TFV, manufactures different kind of industrial valves for shut-off services: ball, butterfly, plug, gate, check, in different trim including teflon lined valves for corrosive applications; as well as neumatic actuators and automation accessories.
PRODUCTS
Butterfly Valves
¼ turn operation shut-off valve with different materials configurations in seat, disc and body according to the chemical compatibility and the application use: general purpose with resilient seated, high performance and high pressure and temperature.
Resilient seated butterfly valve for general purpose
SPECS
Body
Carbon Steel | SS 316 | SS 304 | Ductile Iron / Cast Iron | Ductile Iron with Nylon
Disk
Bronze / Aluminum | SS 316 | SS 304 | Ductile Iron / Cast Iron | Ductile Iron with Nylon
Seat
EPDM | FPM | NBR | Viton | Neoprene, Hypalon, R-PTFE
Process connection
Wafer | Lug
Class
ANSI 150#
Sizes
2” up to 24”
Operation
Lever | Gear Operator | Bare stem | Pneumatic Actuator | Electric Actuator
Double eccentric butterfly valve (high performance)
SPECS
Body
Carbon Steel, SS 316, SS 304, Ductile Iron, Alloy 20, Hastelloy and Monel
Disk
SS 316, SS 304, SS 17-4 PH, Alloy 20, Hastelloy and Monel
Seat
PTFE | RPTFE | TFM | PEEK | SS 316 + RPTFE | SS 316
Process connection
Wafer | Lug
Class
ANSI 150 # | ANSI 300 # | ANSI 600 #
Sizes
1.5" up to 24"
Operation
Lever | Gear Operator | Bare stem | Pneumatic Actuator | Electric Actuator
Quadruple eccentricity butterfly valve (high pressure and temperature application)
The Quadax® 4-offset butterfly valve, with an innovative totally round design and free of friction movement, ensures tightness under extreme conditions with high temperature differences (- 454 ° F to 1,472 ° F) and bi-directional pressure, up to 160 bar (ANSI Class 900).
SPECS
Body
Carbon Steel | SS 316 | Duplex | Inconell and bronze
Disk
Carbon Steel | SS 316 | Duplex,| Inconell and bronze
Seat
SS that may or may not come with graphite, Inconell and PTFE laminate
Process connection
Lug
Class
ANSI 150 # | ANSI 300 # | ANSI 600 #
Sizes
2” up to 70”
Operation
Lever | Gear Operator | Bare Stem | Pneumatic Actuator and Electric Actuator

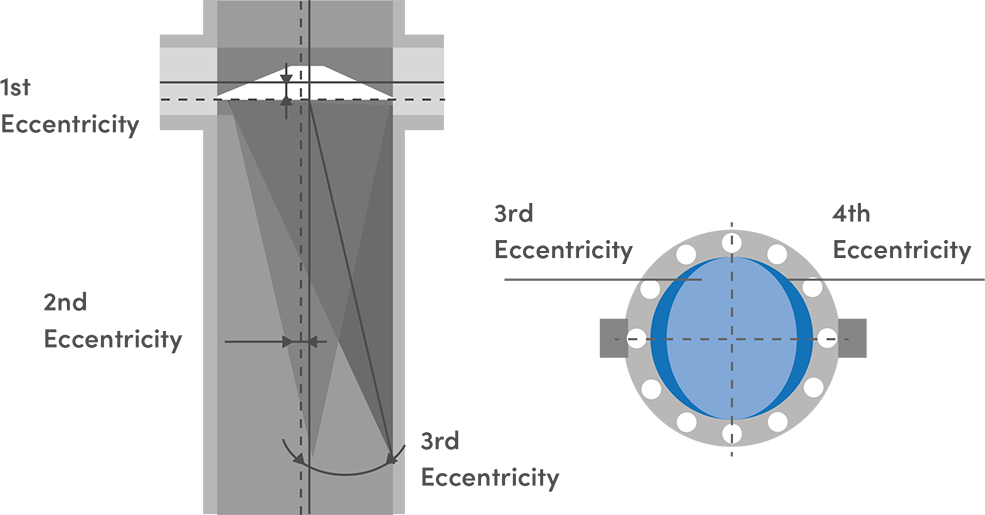

Design principle
Concentric Butterfly Valve
The inflection point is in the center of the seat and in the center of the pipe.
· Only possible with resilient seat valves
1st Eccentricity
The inflection point of the disc moves along the direction of the pipe
· This is 100% friction between seat and disc seal
· Increase torque and wear
2nd Eccentricity
The inflection point of the disc is also offset by the center of the pipe towards the outer edge.
· Friction between seat and disc seal is reduced by approximately 30%
3rd eccentricity
The seat is conical in shape. The cone tip moves from the center of the pipe to the outer edge. A circular cone results in an elliptical seat with the valve body.
· Friction is reduced from 2 to 5% the friction between seat and disc seal
4th eccentricity
The outlet cone used is elliptical, but the section under a particular angle results in a larger and circular shaped area for sealing.
· No friction
· Higher Kv
· Maximum tightness, even in extreme conditions
Ball valves
1/4-turn ball type shut-off valves for different applications in corrosive media, high pressure and temperature in versions with different configurations of body, ball and seat materials.
Trunnion & top entry
The Trunnion and Top Entry type ball valves are ideal for severe use, high pressure and high temperature, very reliable in petroleum, chemical and petrochemical applications.
SPECS
Body
Carbon Steel | 316 Stainless Steel | 316L SS | SS 304 | Steel alloy | Monel | Alloy 20 | Hastelloy | Duplex
Ball
Carbon Steel | 316 Stainless Steel
Seat
PTFE | Nylon | Peek | Devlon | PCTFE | Viton, PTFE / Peek | Molon
Process connection
RF flange | RTJ flange | weldable ends
Class
ANSI 150 # | ANSI 300 # | ANSI 600 # | ANSI 900 # | ANSI 1500 # | ANSI 2500 #
Sizes
2” to 36”
Operation
Lever | Gear Operator | Bare Stem | Pneumatic Actuator | Electric Actuator
Flanged ball valve
SPECS
Types
1 piece body | 2 pieces
Body
Carbon Steel, 316 Stainless steel
Ball
316 Stainless steel
Seat
PTFE, R-PTFE, Teflon Coated Carbon Steel
Process connection
Raised Face Flange (RF)
Class
ANSI 150 # and ANSI 300 #
Sizes
.5" to 6"
Operación
Lever | Gear Operator | Bare Stem | Pneumatic Actuator and Electric Actuator
 12.25.05.png)
3 Way Valve
SPECS
Body
Carbon Steel | 316 Stainless steel
Ball
316 Stainless steel
Seat
PTFE | R-PTFE | UHMWPE | 50/50 Stainless steel coated with Teflon | Teflon Coated Carbon Steel | MG1241 | Delrin | Peek | MG1241
Process connection
Raised Face Flanges (RF)
Class
ANSI 150 # | ANSI 300 #
Sizes
2” to 10”
Operation
Lever | Gear Operator | Bare Stem | Pneumatic Actuator | Electric Actuator
 12.27.07.png)
4 Way Valve
SPECS
Body
Carbon Steel | 316 Stainless steel
Ball
316 Stainless steel
Seat
PTFE | R-PTFE | UHMWPE | 50/50 Stainless steel coated with Teflon | Teflon Coated Carbon Steel | MG1241 | Delrin | Peek | MG1241
Process connection
Raised Face Flanges (RF)
Class
ANSI 150 # | ANSI 300 #
Sizes
2” to 4”
Operation
Lever | Gear Operator | Bare Stem | Pneumatic Actuator | Electric Actuator
Plug valves
Valve that allows a minimum accumulation of fluid in the valve. For general service. The valve controls the flow by a cylindrical or conical plug with a hole in the center.
 9.22.27.png)
SPECS
Types
1 Port | 3 Ports
Body
Cast Iron / Ductile Iron, Carbon Steel, Stainless steel 316, Stainless steel 316L, Alloy20 and Monel
Ball
Carbon Steel, Stainless steel 316, Stainless steel 316L, Alloy 20 and Monel
Seat
PTFE, R-PTFE, PTFE Coated Carbon Steel, High Temperature Plastic (475 ° F)
Process connection
RF Flange, RTJ Flange, Welded Ends, Threaded
Class
ANSI 150 #, ANSI 300 # and ANSI 600 #
Sizes
.5" to 16"
Operation
Lever | Gear Operator | Bare Stem | Pneumatic Actuator and Electric Actuator
Gate Valves
Multi-turn valve for shut-off service through a flat-faced vertical disc that slides at right angles on the seat.
 9.22.36.png)
Cast Iron Gate Valve
SPECS
Types
Cast iron
Gate
Cast Iron | Bronze / Brass
Seat
Flexible Wedge | Solid Wedge
Process connection
Flange
Class
ANSI 125 #
Sizes
2” to 14”
Operation
Manual wheel | Gear Operator | Bare Stem | Pneumatic Actuator and Electric Actuator
 9.31.25.png)
Cast Steel Gate Valve
SPECS
Body
Carbon Steel | 316, 316L | 304 Stainless Steel | Alloy Steel | Monel Alloy 20 | Hastelloy | Duplex
Gate
316 Stainless Steel, Monel
Seat
Flexible Wedge, Solid Wedge
Process connection
RF flange | RTJ flange | FF flange | welded ends
Class
ANSI 150 # | ANSI 300 # | ANSI 600 # | ANSI 900 # | ANSI 1500 # | ANSI 2500 #
Sizes
2" up to 52"
Operation
Manual wheel | Gear Operator | Bare Stem | Pneumatic Actuator and Electric Actuator
Check Valve
It is a valve for unidirectional flow, the disc open in the positive way and closes against the flow.
 10.11.18.png)
SPECS
Body
Carbon Steel, 316, 316L and 304 Stainless Steel, Monel, Alloy 20, Hastelloy, Duplex,
Disk
316 Stainless Steel, Stainless steel 316L, Cast Iron
Seat
Metal / Metal, EPDM, NBR, Viton, Neoprene
Process connection
Wafer and Lug
Class
ANSI 150 # | ANSI 300 # | ANSI 600 # | ANSI 900 # | ANSI 1500 #
Sizes
2” to 84”
Y-type globe valves
Y-type globe shut-off valve for high-pressure steam, high-temperature applications.
 11.27.36.png)
SPECS
Type
Globe
Bonnet Design
Screwed | welded | High pressure sealing
Body
Carbon Steel | Forged Steel | Forged Stainless Steel | Monel | Hastelloy
Conical Globe
Stainless steel 304 | Stainless steel 310 | CuNi | Monel | Stainless steel 316
Seat
Stainless steel 304 | SS 310 | CuNi | Monel | Stainless steel 316 | Stainless steel 316 hardened
Process connection
Threaded | Weldable Ends | RF flanges | RT flanges
Class
ANSI 150# | 300# | 600# | 800# | 1500# | 2500#
Sizes
1/4” to 2”
Operation
Lever | Gear Operator | Bare Stem | Pneumatic Actuator | Electric Actuator
Teflon lined shut-off valves for corrosive applications.
PTFE lined butterfly valve
Teflon lined butterfly valves for corrosive fluid service application. Available in different teflon specifications.
SPECS
Body
Carbon Steel | SS 316 | SS 316L | Ductile Iron | Cast Iron | Alloy 20 | Hastelloy
Disk
Carbon Steel | SS 316 | SS 304 | Alloy 20 | Hastelloy
Liner
PFA | FEP | ETFE | PTFE
Seat
PFA | FEP
Process connection
Wafer
Class
ANSI 150#
Sizes
1.5" up to 24"
Operation
Lever | Gear Operator | Bare Stem | Pneumatic Actuator | Electric Actuator
PTFE lined ball valve
Teflon lined ball valves for corrosive fluid service applications. Available in different teflon specifications.
SPECS
Body
Carbon Steel, SS 316, SS 316L, Ductile Iron / Cast Iron, Alloy 20 and Hastelloy.
Ball
Carbon Steel, SS 316, SS 304, Alloy 20 and Hastelloy
Liner
PFA, FEP, ETFE, KYNAR, PPL, HDPE
Seat
PTFE
Process connection
Flanges
Class
ANSI 150#
Sizes
0.5” up to 10”
Operation
Lever | Gear Operator | Bare Stem | Pneumatic Actuator | Electric Actuator
PTFE lined check valve
Teflon lined check valves for corrosive fluid service applications. Available in different teflon specifications.
 10.26.45.png)
SPECS
Body
Carbon Steel, SS 316, SS 316L, Ductile Iron / Cast Iron
Disk
Carbon Steel, SS 316, SS 304
Liner
PFA, FEP, ETFE, KYNAR
Seat
PFA, FEP
Process connection
Wafer
Class
ANSI 150#
Sizes
0.5” up to 10”
Operation
Lever, Gear Operator. Bare Stem, Pneumatic Actuator and Electric Actuator
Valve actuators
 10.36.52.png)
Electric actuator
SPECS
Electrical power supply
24 VCD-110 | 220 | 440 VCA
Type
ON-FF | Modulating
Protection
Weatherproof IP67 | Nema 4 & 6 | Explosionproof EeXd II B T4
Position switches
Open / Closed | SPDT | 250VAC 16A
Torque
From 6 to 300 Nm
Choices
Position indicator | handwheel | DC motor | Intelligent control unit | Additional Limit Switches | Potentiometer unit | Rechargeable Battery Backup | Proportional control unit.
 10.37.00.png)
Pneumatic rack and piston actuator
SPECS
Air supply
40-120 PSI
Type
Single Action (Spring Return) | Double Action (Air - Air)
Visual indicator
According to VID / VIE3845
Body
Anodized Aluminum, includes Caps and Epoxy paint
Namur adaptation
For Solenoid Valves
Valve mounting
Position indicator | handwheel | DC motor | Intelligent control unit | Additional Limit Switches | Potentiometer unit | Rechargeable Battery Backup | Proportional control unit.
 10.37.10.png)
Positioners
SPECS
Type
Pneumatic | Electro pneumatic | Smart
Drive
Linear | Rotary
Protection
Weatherproof IP67 | NEMA 4 & 6 | Explosionproof Eexd II BT4 | Intrinsically Safe
Input signal
4-20mA | 3-15 psi
Pressure gauges
Including VID / VIE3845
Choices
Lever for multi mounting | proportional control unit | High temperature | Visual position indicator | Limit Switch | Proximity sensors | position transmitter
 10.37.19.png)
Switch box
SPECS
Mechanical Switches
SPDT | DPDT | Proximity | Intrinsically Safe
Protection
Weatherproof IP67 | NEMA 4 & 6 | Explosionproof Eexd II BT4 | Intrinsically Safe
Mounting
Namur Type
Position indicator
ON/OFF
Body
Anodized Aluminum | Stainless steel
Choices
Proportional control unit | High Temperature | Visual position indicator | Proximity sensors | Position transmitter
